Stainless Steel Pressure Welded Grating Plate with High Load-Bearing Capacity

beschrijving

Platform Stainless Steel Grating Pressure Welded Grating Plate

Galvanized grating, also called galvanized steel grating or galvanized steel bar grating, refers to steel bar grating made of mild carbon steel through hot dipped galvanized surface treatment. Mild carbon steel provides an economical, high strength solution for most industrial and commercial applications, while hot dipped galvanized surface treatment supplies excellent corrosion resistance performance for durability.

Product Specifications

Structure: Welding with flat steel and cross/round bars with specific spacing
Features: High strength, light structure, high load bearing capacity

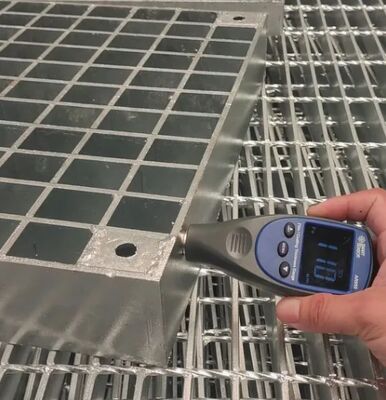

Surface: Hot dipped zinc coating provides excellent anti-corrosion properties

Load Bearing Flat Bar Size	Thickness ≥3mm, Depth ≥19mm
19×3, 19×5, 20×3, 20×5, 25×3, 25×4, 25×4.5, 25×4.7, 25×5…40×6, 40×8, 40×10,…90×6…	Various sizes available
Pitch of Load Bearing Flat Bars (mm)	12.5, 15, 20, 30, 30.6, 32.5, 34, 34.8, 35.3, 40, 60, 80...
Pitch of Cross Bars (mm)	38.1, 50, 50.8, 70, 75, 80, 99, 100, 101.6, 102...

Steel Grating Standards

Country	Steel Grating Standard	Steel Material Standard	Hot Galvanizing Standard
China	YB/T4001-1998	GB 700-88	GB/T13912-2002
USA	ANSI/NAAMM(MBG531-88)	ASTM (A36)	ASTM(A123)
England	BS4592-1987	BS4360 (43A)	BS729
Australia	AS1657-1992	AS3679	AS1650

Technical Specifications

No.	Item	Description
1	Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10-100x10mm etc I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x1/4", 1 1/4"x1/4", 1 1/2"x1/4", 1"x1/8", 1 1/4"x1/8", 1 1/2"x1/8", etc
2	Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
3	Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2" & 4" etc
4	Material Grade	ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc
5	Surface Treatment	Black, self color, hot dip galvanized, painted, spray coating
6	Grating Style	Plain / Smooth, Serrated / teeth, I bar, serrated I bar

Steel Grating Types

1. Plain Type: One of the most widely used gratings, suitable for flooring, sidewalk, drainage pit cover, stair tread, etc.

2. Serrated Type: Better non-skid properties and safety compared with plain grating.

3. I-Shape Type: Lighter, more economical and practical compared with plain grating.

Key Features

Superior Anti-Slip Performance: Features specially designed serrated bearing bars or anti-slip plate surfaces that provide outstanding traction, ensuring safe passage even in wet, oily, or icy conditions.
Integrated Safety Design: Can be customized with integrated nosing strips, warning strips, or kick plates to form a complete fall protection system, complying with the most stringent safety regulations.
Excellent Drainage & Ventilation: The open mesh structure ensures water, snow, dirt, and debris do not accumulate on the tread surface, keeping stairs clean and dry while reducing cleaning and maintenance costs.
High Strength & Lightweight: Significantly lighter than solid steel plate treads (up to 50%-70% weight reduction), lowering the load on the stair support structure and easing transportation and installation.
Flexible & Quick Installation: Offers various installation options including bolted, welded, or clip-on systems, allowing for easy adaptation to diverse stair structures and on-site conditions.

Frequently Asked Questions

What is the standard spacing for bearing bars?

Standard spacings are typically 30mm or 40mm (center-to-center), though 19-W-4 (1-3/16" spacing) is a common North American industrial standard.

What is "19-W-4" nomenclature?

This is a standard designation: 19: Spacing of bearing bars in 16ths of an inch (19/16"). W: Means the type is "Welded." 4: Spacing of cross bars in inches (4").

How much load can steel grating handle?

Load capacity depends on the bearing bar size (height and thickness) and the span length. Manufacturers provide "Load Tables" which specify allowable uniform loads and concentrated loads.

Is steel grating slip-resistant?

Yes, particularly the serrated type. For high-traffic pedestrian areas, serrated grating meets most international anti-slip safety standards (like OSHA or DIN 51130).
