Stainless Steel 304/316 Heavy Duty Steel Bar Grating with Bearing Bar Size 20x3 to 100x9 and 12.5 to 100mm Pitch

Stainless Steel 304/316 Heavy Duty Steel Bar Grating with Bearing Bar Size 20x3 to 100x9 and 12.5 to 100mm Pitch
Stainless Steel 304/316 Heavy Duty Steel Bar Grating with Bearing Bar Size 20x3 to 100x9 and 12.5 to 100mm Pitch Stainless Steel 304/316 Heavy Duty Steel Bar Grating with Bearing Bar Size 20x3 to 100x9 and 12.5 to 100mm Pitch Stainless Steel 304/316 Heavy Duty Steel Bar Grating with Bearing Bar Size 20x3 to 100x9 and 12.5 to 100mm Pitch

Grote Afbeelding :  Stainless Steel 304/316 Heavy Duty Steel Bar Grating with Bearing Bar Size 20x3 to 100x9 and 12.5 to 100mm Pitch

Productdetails:
Merknaam: Gnee
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 2 stks
Verpakking Details: Bevestig met metalen riem. Verpakking met pallet, buitenverpakking met waterdichte plastic folie. Kr
Levertijd: Verscheept in 20 dagen na betaling
Levering vermogen: 300000 vierkante meter/vierkante meter per maand
Contact

Stainless Steel 304/316 Heavy Duty Steel Bar Grating with Bearing Bar Size 20x3 to 100x9 and 12.5 to 100mm Pitch

beschrijving
Markeren:

Stainless Steel 304/316 Steel Bar Grating

,

Bearing Bar Size 20x3 to 100x9 Floor Grating

,

Bearing Bar Pitch 12.5 to 100mm Metal Grating

Galvanized Steel Welded Serrated Anti-slip Trench Cover Floor Bar Grating Heavy Duty
Steel Grating is welded bearing steel bars and cross twisted bars according to required pitch space between steel bars by steel grating welding machines. It is a grid building material with excellent durability and performance characteristics.
All gratings are manufactured using high-quality standard steel materials that exhibit superior hardness and high tensile strength. The product offers exceptional durability, corrosion resistance, and outstanding anti-slip performance. Available in various spacing pitches, thicknesses, and heights to meet different load-bearing requirements and application environments.
Key Advantages
  • Expert Manufacturing with precision engineering
  • Robust Export Experience with global distribution
  • Customization Capability for specific project needs
  • Competitive Pricing without compromising quality
  • Stringent QC & Certification compliance
  • Responsive Service and technical support
Technical Specifications
Material 1. Carbon Steel Q235
2. Stainless Steel 304 / 316
Type Press locked / Flat bar / Serrated bar / I Bar
Bearing Bar Size 20 x 3 to 100 x 9; "I-section" specifications: 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
Bearing Bar Pitch 12.5 to 100 mm (30, 40, 60mm recommended), America standard available
Cross Bar Pitch 18.5 to 101.6mm (50, 100mm recommended), America standard available
Specification Size of bearing flat steel: 25x3mm / Center space: 30mm, 40mm, 50mm, 100mm
Size of horizontal pole: 10x2mm / Center space: 50mm, 100mm
Surface Treatment Untreated / Painting / Hot Dip Galvanizing
Steel Standard China GB700-88 / America ASTM (A36) / Britain ASTM (A36)
HDG Standard China GB/T13912-92 / America ASTM (A123) / Britain BS729
Quality Standard China YB/T4001-1998
America ANSI/NAAMM (MBG531-88)
Britain BS4592-1987
Australia AS1657-1992
Bearing Bar Pitch Specifications
No. Bearing Bar Pitch (mm) Standard Panel Width (Bearing Bar Thickness 5mm) Bearing Bar Number (PC) Remark
1 12.5 1005 81 Pitch between the two sides are smaller than normal bearing bar pitch.
2 15 1010 68
3 20 1010 51
4 22 995 46
5 23.85 1007 43
6 25 1005 41
7 30 995 34
8 30.16 1000 34
9 30.3 1005 34
10 32.5 1013 32
11 34.3 1000 30
12 35 1020 30
13 35.3 1029 30
14 40 1005 26
15 41 1030 26
16 41.4 999 25
17 50 1005 21
18 60 965 17
19 62 997 17
Product Images

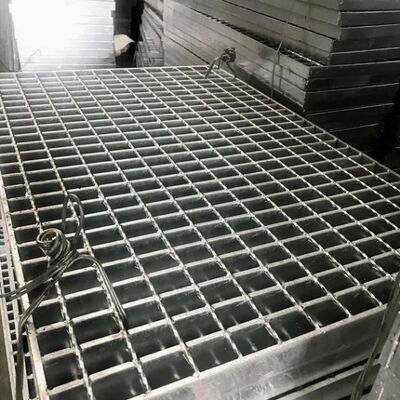

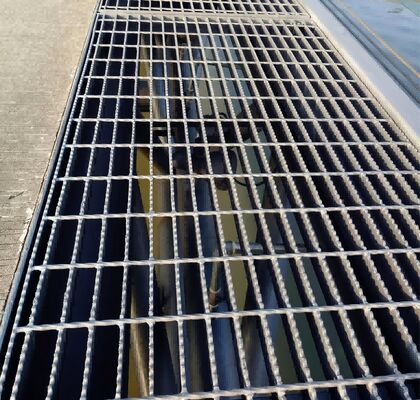

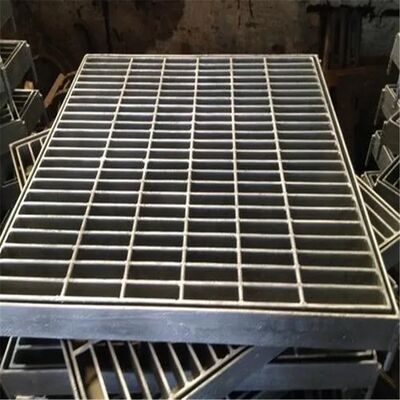

Stainless Steel 304/316 Heavy Duty Steel Bar Grating with Bearing Bar Size 20x3 to 100x9 and 12.5 to 100mm Pitch 0 Stainless Steel 304/316 Heavy Duty Steel Bar Grating with Bearing Bar Size 20x3 to 100x9 and 12.5 to 100mm Pitch 1 Stainless Steel 304/316 Heavy Duty Steel Bar Grating with Bearing Bar Size 20x3 to 100x9 and 12.5 to 100mm Pitch 2

label:

galvanized bar grating,

steel floor grating,

steel grating panels
