Corrosion Resistant Customizable High Zinc Coating Steel Grating Platform Grating for Industrial Walkways

Corrosion Resistant Customizable High Zinc Coating Steel Grating Platform Grating for Industrial Walkways
Corrosion Resistant Customizable High Zinc Coating Steel Grating Platform Grating for Industrial Walkways Corrosion Resistant Customizable High Zinc Coating Steel Grating Platform Grating for Industrial Walkways Corrosion Resistant Customizable High Zinc Coating Steel Grating Platform Grating for Industrial Walkways

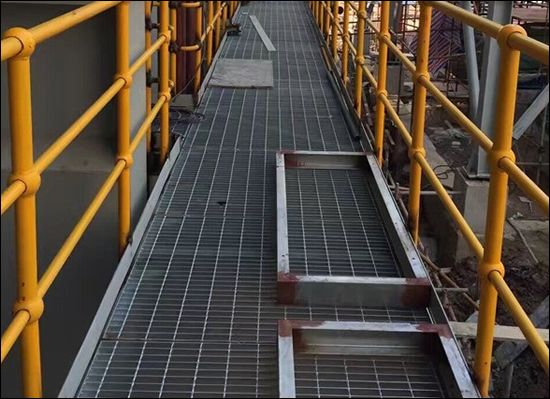

Grote Afbeelding :  Corrosion Resistant Customizable High Zinc Coating Steel Grating Platform Grating for Industrial Walkways

Productdetails:
Contact

Corrosion Resistant Customizable High Zinc Coating Steel Grating Platform Grating for Industrial Walkways

beschrijving
Markeren:

Corrosion Resistant Steel Grating

,

Customizable Platform Grating

,

High Zinc Coating Metal Grating

Galvanized GI Platform Deck Walkway Caltwalk Floor Tree Driveway Steel Grating Plate for Malaysia
Surface Process of Grating
Hot Galvanizing
Normally, hot galvanizing is carried out after the end welding process. For bearing bars with thickness not less than 5mm, the average zinc layer weight will not be less than 610g/m². For thickness less than 5mm, the average zinc layer weight will not be less than 460g/m². Quality and requirements after hot galvanizing comply with GB/T 13912 standards.
Lacquering
Additional protection layer applied through spraying, brushing, or soaking methods.
Service Life of Hot Galvanizing
With a zinc coating thickness of 100μm, this shows the anticipated product life in various circumstances.
Anti-Acid and Alkali Corrosion Capacity
Effective in pH range of 6 to 12.5, forming a stable protective film on the zinc surface with excellent anti-corrosive properties.
Calculation of Weight and Area
  • Weight increases after welding and galvanizing: 12% for 30mm pitch, 14% for 40mm pitch, and 16% for 60mm pitch bearing bars
  • Custom-sized gratings calculated based on actual area (including cutouts and taps)
  • Gratings made to customer drawings calculated by total outside dimensions
  • Unusual size cutouts not deducted from length/width measurements
Corrosion Resistant Customizable High Zinc Coating Steel Grating Platform Grating for Industrial Walkways 0
Applications
  • Flooring steel gratings
  • Stair treads
  • Sun shades
  • Drain covers
  • Security screens
  • Manhole covers
  • Mezzanine flooring
  • Earth mats
  • Shelving
  • Stanchions (hand rails)
  • Trench covers
Corrosion Resistant Customizable High Zinc Coating Steel Grating Platform Grating for Industrial Walkways 1
Common Specification of Steel Grating
Special Material, High Zinc Coating and New Style can be Customized.
Material Standard ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316, Mild steel & Low carbon steel, etc
Bearing Bar (Width x Thickness) 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10...100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x1/4",1 1/4"x1/4", 1 1/2"x1/4", 1"x1/8", 1 1/4"x1/8", 1 1/2"x1/8" etc
Bearing Bar Pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2" & 4" etc
Surface Treatment Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement.
Grating Style Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar
Packing (1) Bandage and Paperboard: Generally applies to neat steel plate; (2) Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength; (3) Steel Pallet: Traditional export packing.
Payment Term T/T, L/C, Western Union, Credit Card, ****** Trade Assurance
Product Name: Metal Serrated Steel Grid Grating To Construction Building Material
Corrosion Resistant Customizable High Zinc Coating Steel Grating Platform Grating for Industrial Walkways 2

label:

metal bar grating,

metal grate flooring,

steel grating platform
